SGM Prime AirMax Supreme is a single-layer solution created using patented AIRBIRTH technology to suppress low-frequency noise and road drone from the floor, trunk, and wheel arches. Vibration damping and sound insulation are combined within a single sheet, allowing the area to be treated in one step rather than two.

Low-frequency drone is audible at any speed and is the most difficult type of noise to mitigate. AirMax Supreme operates with maximum efficiency in the 50–750 Hz range; in this band, it outperforms traditional two-layer solutions by 30%, offering sound insulation of up to 40 dB.

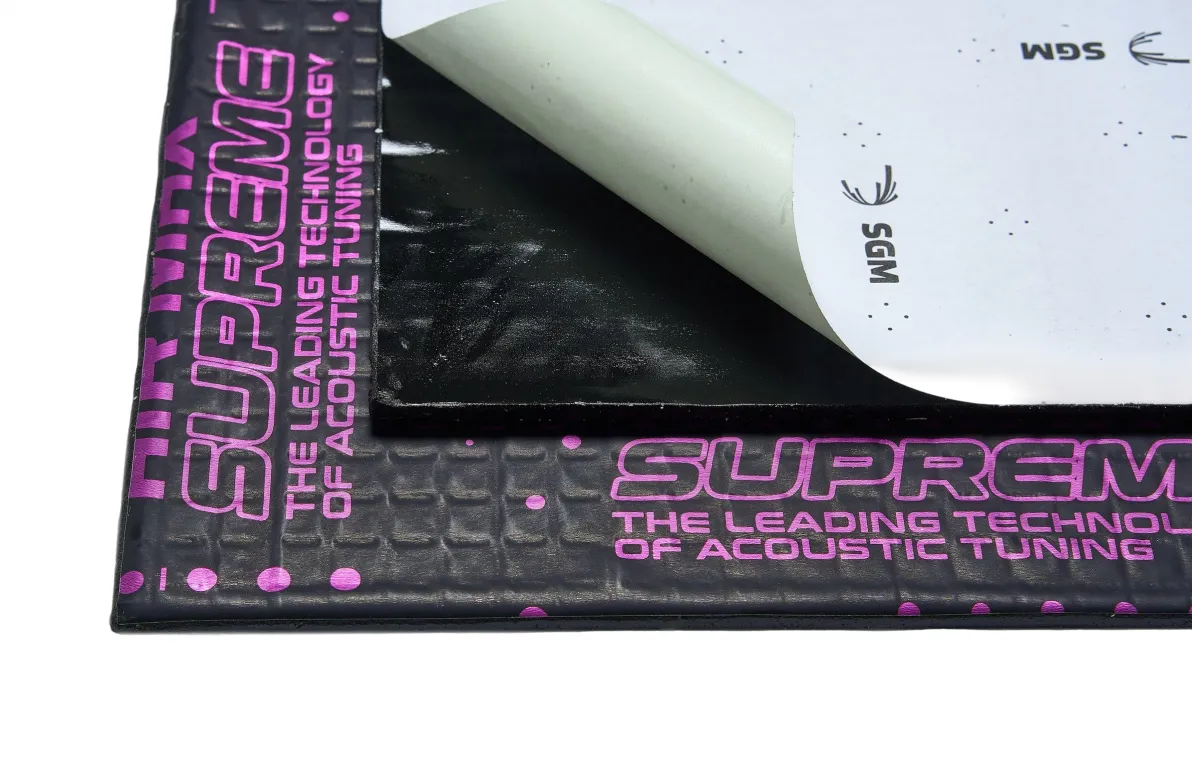

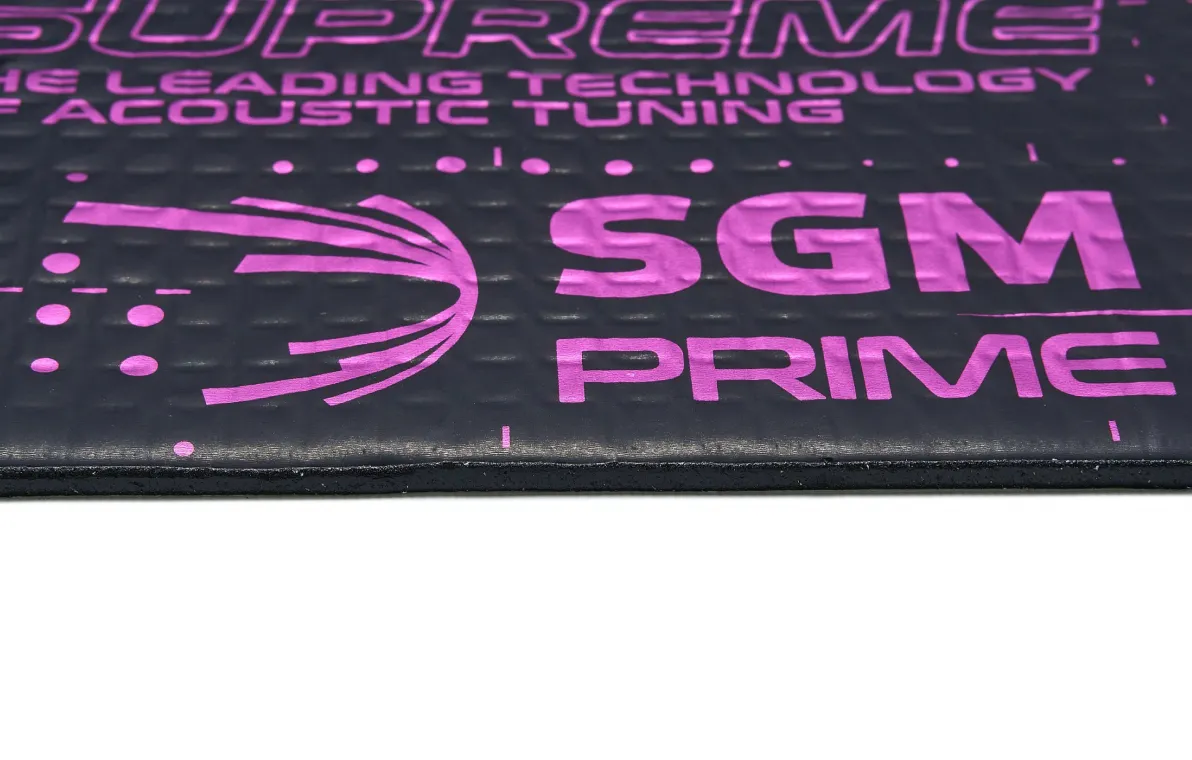

The sheet consists of two layers with differing densities and elastic properties. The bottom layer handles vibration damping and adhesion to the metal, while the top layer acts as a sound insulation barrier. This combination results in a surface mass of 9.8 kg/m² and a thickness of 6.5 mm—a weight profile suited for low-frequency control and a thickness that allows interior trim and carpeting to fit back into their original positions.

With absolute moisture resistance and temperature stability up to at least 120°C, the material is designed to withstand the conditions found in floor, trunk, and wheel arch areas, ensuring long-lasting performance. AirMax Supreme integrates two functions into a single material, thereby reducing the number of installation steps.

  • Sheet thickness, mm: 6.5
  • Sheet size, cm: 40×25
  • Weight per 1 m², kg: 9.8
  • Sound insulation, dB: up to 40
  • Operating frequency range, Hz: 50–750
  • Operating temperature range, ℃: no lower than 120
  • Moisture resistance: yes

Advantages:

  • Suppression of low-frequency noise and drone in the 50–750 Hz range;
  • AIRBIRTH technology: two layers with differing densities and elasticities;
  • Vibration damping and sound insulation in a single material;
  • Up to 30% more effective than two-layer solutions;
  • Completely moisture-resistant;
  • Fewer installation steps.

Recommended areas of application:

Trunk

Arches

Floor

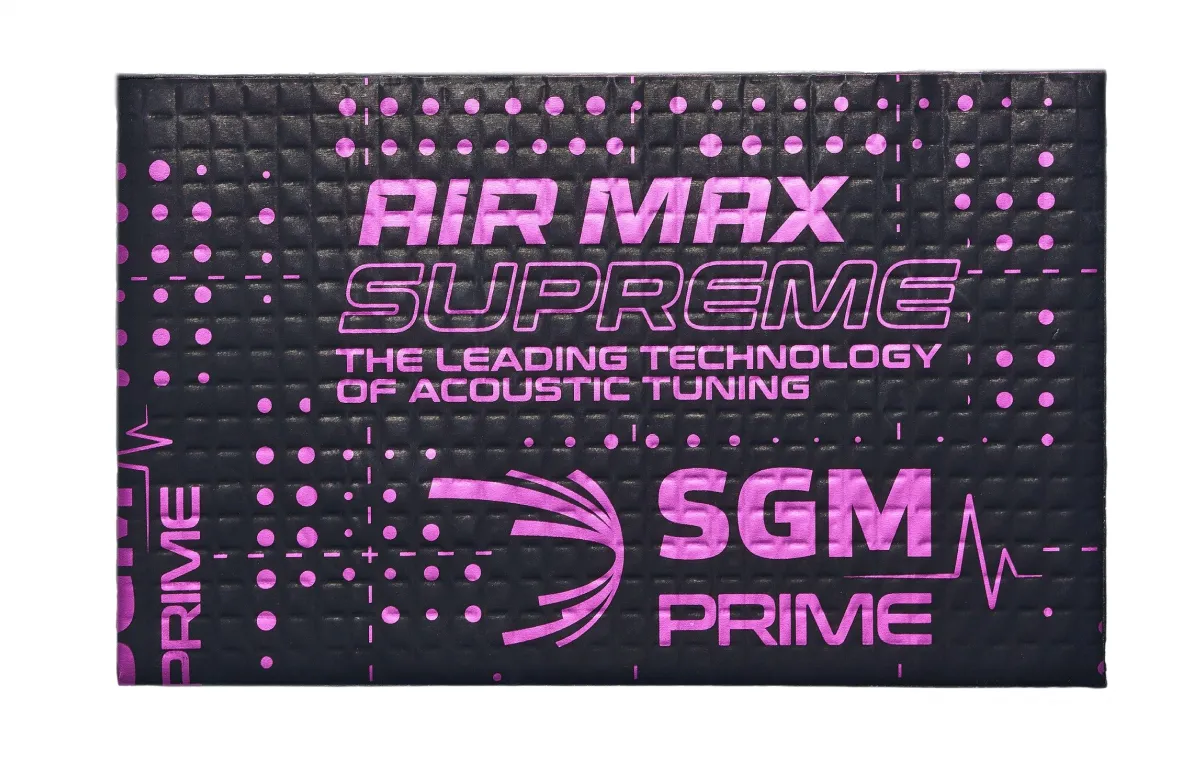

Multi-layer composite car sound deadening SGM Prime AirMax Supreme

SUPREME

SGM Prime AirMax Supreme is an innovative single-layer solution from a specialized series designed to suppress low-frequency noise and droning from the floor, trunk, and wheel arches. It offers maximum effectiveness in the 50 to 750 Hz range.

  • Sheet thickness, mm: 6.5
  • Sheet size, cm: 40×25
  • Application areas: floor, trunk, arches

Sheet thickness:

6.5 mm
