Car sound deadening SGM Base
The SGM Base 1.7 mm is a core vibration damping material, integrating a standard bitumen mastic compound and 60µ aluminum foil to deliver reliable panel vibration isolation and anti-corrosion properties.
-
Sheet size, cm
70x50
-
MLF, c.u.
The mechanical loss factor shows how effectively the material absorbs vibration energy: 0 — the material does not damp vibration at all, 1 — ideal absorption.
0.14
-
Application areas
doors, hood, trunk lid
Description

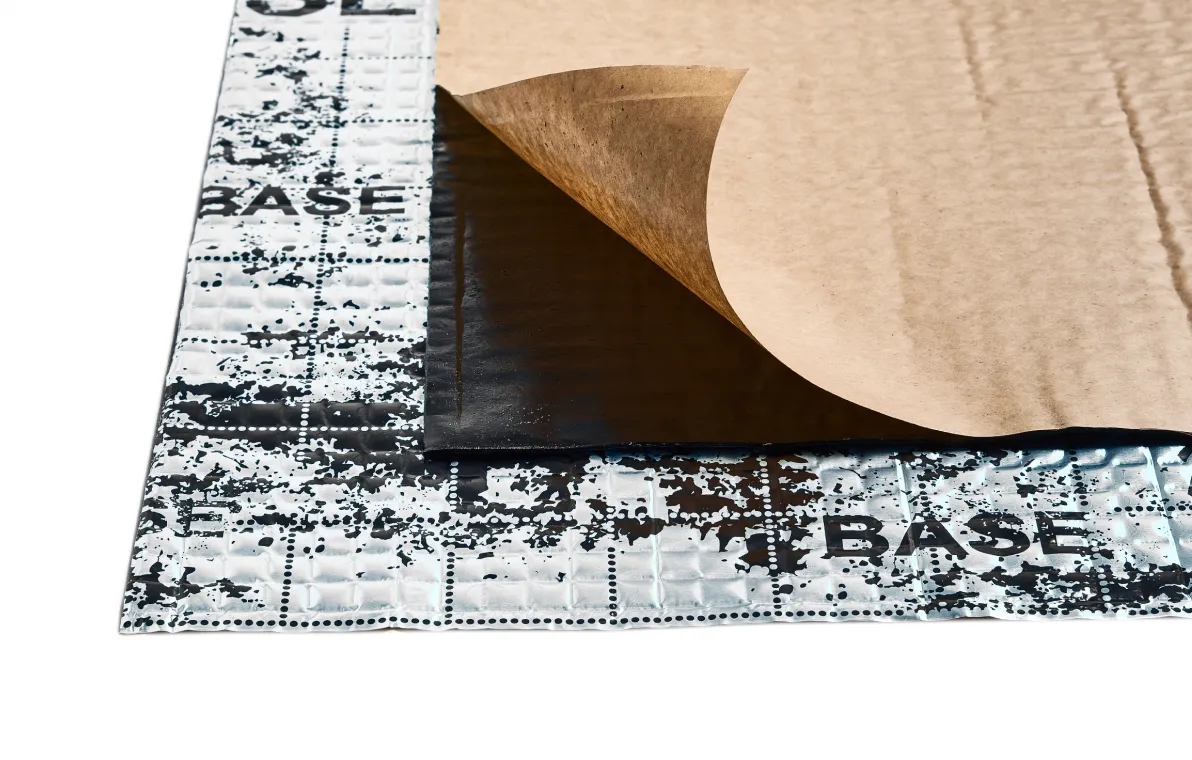

Car sound deadening SGM Base 1.7 mm is a foundational sound-deadening material made from a classic bitumen mastic and 60-micron aluminum foil. It provides primary protection against body panel vibrations and prevents corrosion of metal surfaces. SGM Base offers stability across a wide temperature range from -40°C to +100°C, allowing for use in various climates. The siliconized release paper on the adhesive side significantly simplifies the installation process.
The material features an optimal 1.7 mm thickness, which is sufficient for effective performance in low-vibration areas of the body: doors, roof, trunk lid, and hood. SGM Base 1.7 mm is easy to install—a thorough pass with an application roller is enough for a reliable bond.
During operation, avoid proximity to high-heat components such as the engine, exhaust manifolds, and exhaust system.
Advantages
- The most economical choice for foundational soundproofing;
- Ideal for treating low to medium vibration areas;
- Perfectly suited for do-it-yourself (DIY) projects;
Recommended application areas
Specifications
-
Sheet thickness, mm
1.7
-
Sheet size, cm
70x50
-
Weight per 1 m², kg
3.0
-
MLF, c.u.
The mechanical loss factor shows how effectively the material absorbs vibration energy: 0 — the material does not damp vibration at all, 1 — ideal absorption.
0.14
-
Adhesion to metal, N/cm²
How strongly the soundproofing material bonds to the metal car body: how firmly it sticks and how hard it is to tear off.
from 5
-
Foil thickness, µm
60
-
Sheets per pack, pcs
10
-
Operating temperature range, °C
from -40 to +100
-
Installation method
does not require heating
-
Moisture resistance
yes
