Home / SGM Prime. Best materials / Multi-layer composite noise barrier SGM Prime Mix 6 mm

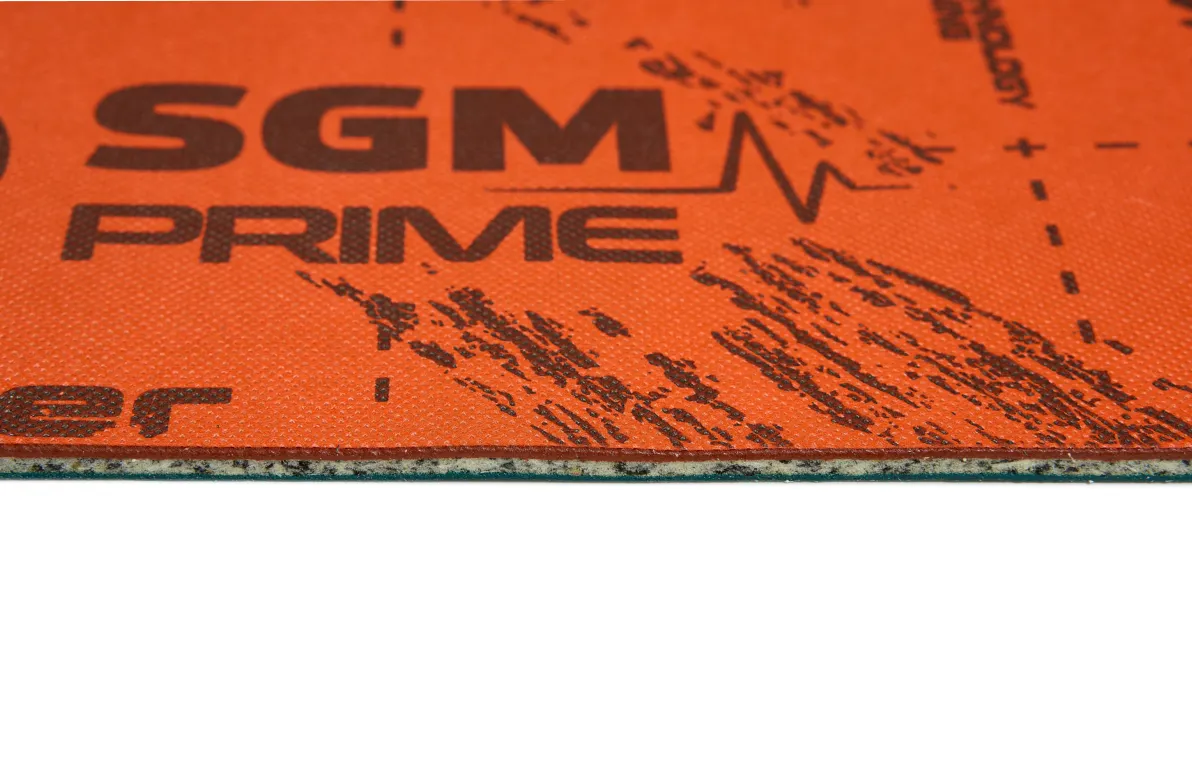

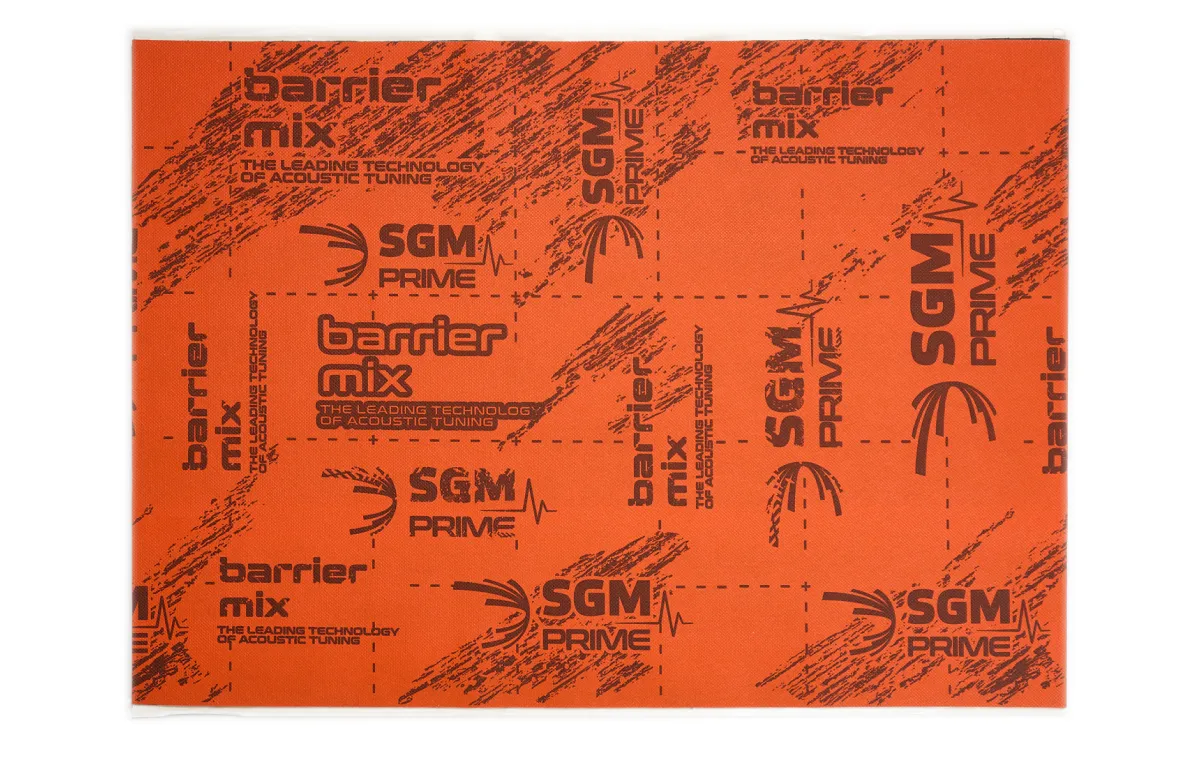

Heavy density re-bonded polyurethane foam with MLV (polymer) SGM Prime Barrier Mix 6 mm is a premium multi-layer noise barrier from the SGM Prime line. It combines three functional layers into a single high-performance material:

  • Face layer — Heavy Mass Loaded Vinyl (MLV) (polymer core) 3 mm for optimal sound blocking across a broad frequency range.
  • Inner layer — a high-density rebond polyurethane foam engineered for maximum sound absorption.

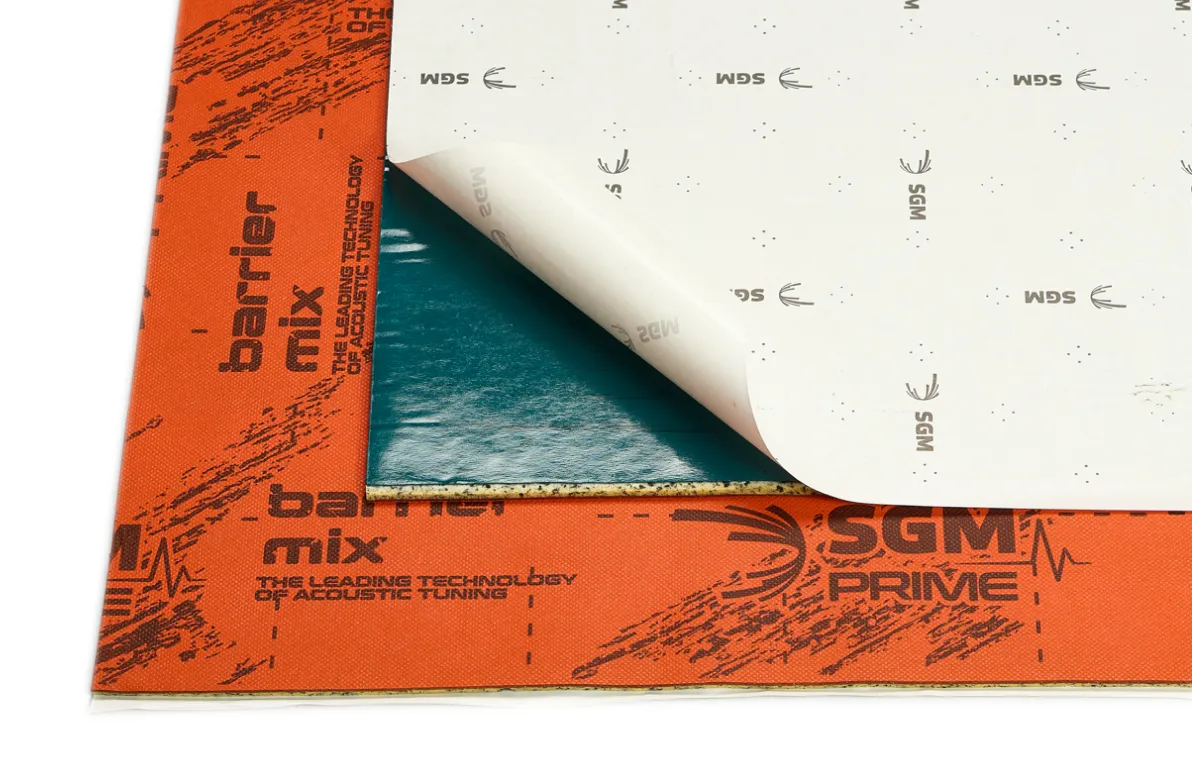

  • Lower and mounting layer — a pressure-sensitive adhesive backing with siliconized release paper, which facilitates installation and creates a constrained layer damping (CLD) effect to dampen vibrations.

This material provides maximum noise suppression via resonant absorption while maintaining an optimal, minimal thickness.

Thanks to its unique structure and patented technology, SGM Prime Barrier Mix delivers durable and reliable performance even with extreme temperature swings. Note: The material is not suitable for high-humidity areas, as its sound-absorbing layer is permeable to moisture. It is specifically engineered for high sound-pressure zones like the floor, trunk, and wheel arches.

  • Sheet thickness, mm: 6
  • Sheet size, cm: 50х80
  • Weight per 1 m², kg: 6,0
  • KMP, conventional units: not less than 0.12
  • Noise absorption efficiency: up to 35 dB
  • Adhesion to metal, N/cm²: from 5
  • Number of sheets in a package, pcs: 5
  • Operating temperature range, ℃: from -40 to +120
  • Installation method: does not require heating
  • Moisture resistance: no

Advantages:

  • Super-efficient sound absorption up to 35 dB;
  • Harnessing resonance for superior sound control.;
  • Premium quality materials.

Recommended areas of application:

Trunk

Arches

Floor

Сomposite noise barrier SGM Prime Mix

PRIME

Composite noise barrier SGM Prime Mix is ​​a highly effective premium multi-layer noise barrier from the SGM Prime line. It provides maximum sound absorption using the harnessing resonance for superior sound control.

  • Thickness, mm: 6
  • Sheet size, cm: 50х80
  • Noise absorption efficiency: up to 35 dB
  • Application areas: floor, trunk, arches (from the interior side)

Sheet thickness:

6 mm

0 pcs.
