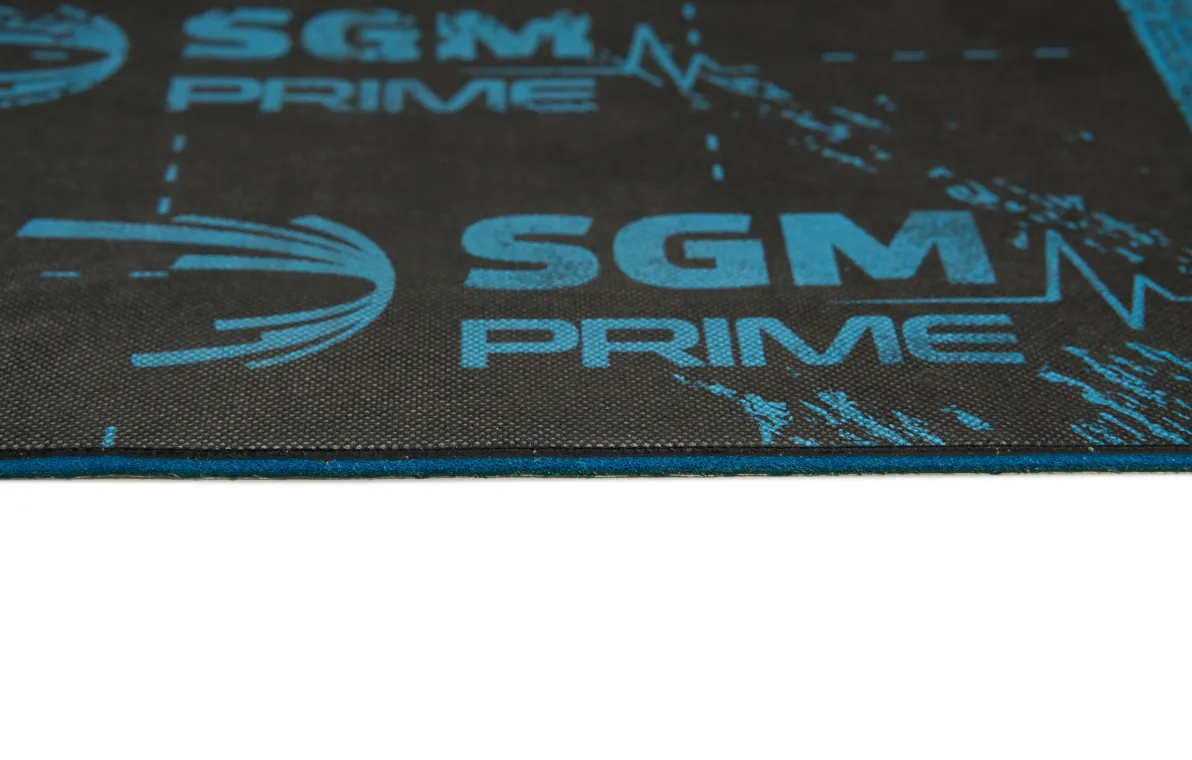

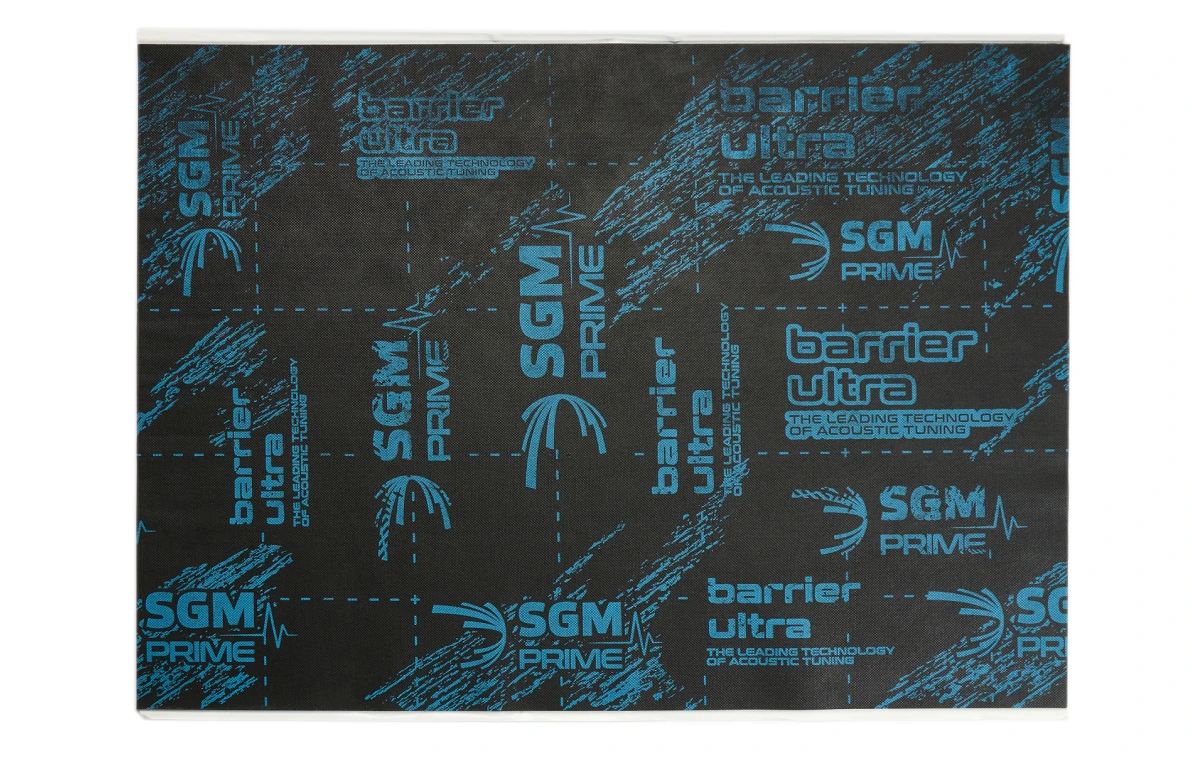

Closed-cell foam with MLV (polymer) SGM Prime Barrier Ultra 6mm is a premium multi-layer noise barrier from the SGM Prime line. It combines three functional layers into a single high-performance material:

  • Face layer — Middle-Heavy  Mass Loaded Vinyl (MLV) (polymer core) for optimal sound blocking across a broad frequency range.
  • Inner layer — a resilient closed-cell polyethylene foam layer for thermal insulation and additional sound absorption.

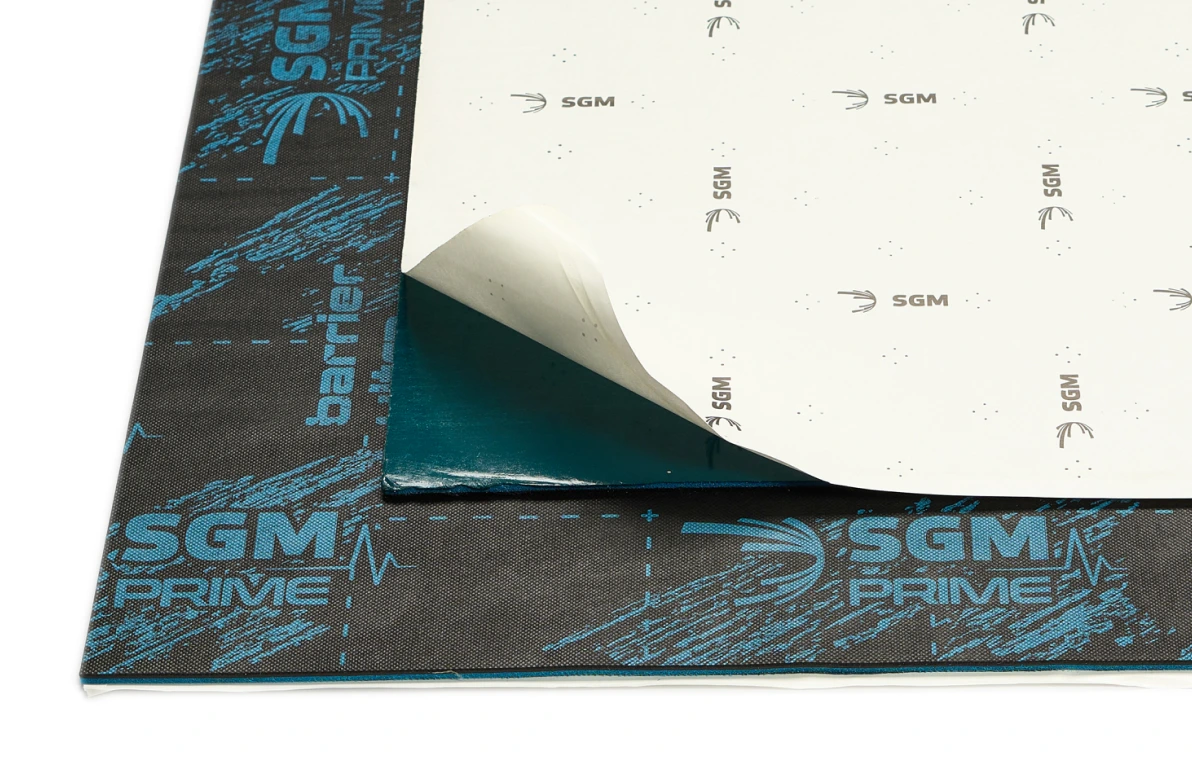

  • Lower and mounting layer — a pressure-sensitive adhesive backing with siliconized release paper, which facilitates installation and creates a constrained layer damping (CLD) effect to dampen vibrations.

This composite noise barrier material provides high-performance sound suppression across a broad frequency spectrum, all while maintaining a normal weight profile. Its moisture-resistant construction and temperature stability ensure reliable performance in diverse climates. It is designed for use in areas where a standard-weight material is sufficient to provide acoustic comfort.

  • Sheet thickness, mm: 6
  • Sheet size, cm: 50х80
  • Weight per 1 m², kg: 5,5
  • KMP, conventional units: not less than 0.12
  • Noise absorption efficiency: up to 33 dB
  • Adhesion to metal, N/cm²: from 5
  • Number of sheets in a package, pcs: 10
  • Operating temperature range, ℃: from -40 to +120
  • Installation method: does not require heating
  • Moisture resistance: yes

Advantages:

  • Maximum sound absorption efficiency up to 33 dB;
  • Improved heat and sound insulation properties;
  • Absolute moisture resistance.
  • Simple peel-and-stick installation thanks to the self-adhesive mastic backing.

Recommended areas of application:

Trunk

Arches

Floor

Composite noise barrier SGM Prime Ultra

PRIME

Composite noise barrier SGM Prime Ultra is a premium multi-layer noise barrier from the SGM Prime line. It combines maximum noise absorption and enhanced vibration protection.

  • Thickness, mm: 6
  • Sheet size, cm: 50х80
  • Noise absorption efficiency: up to 33 dB
  • Application areas: floor, trunk arch (outside), engine shield

Sheet thickness:

6 mm

0 pcs.
